80W Solar Street Lighting

It is specially designed for high poles between 8~10 meters, it built in big capacity of LifePO4 battery and high efficiency of MPPT solar charge controller. The designed lifetime is 8~10 years without maintaince. 64 nos of Philips SMD5050 5W/LED is adopted and drived with 48V constant voltage and low current input to get ultra efficiency output up to 160lm/W.

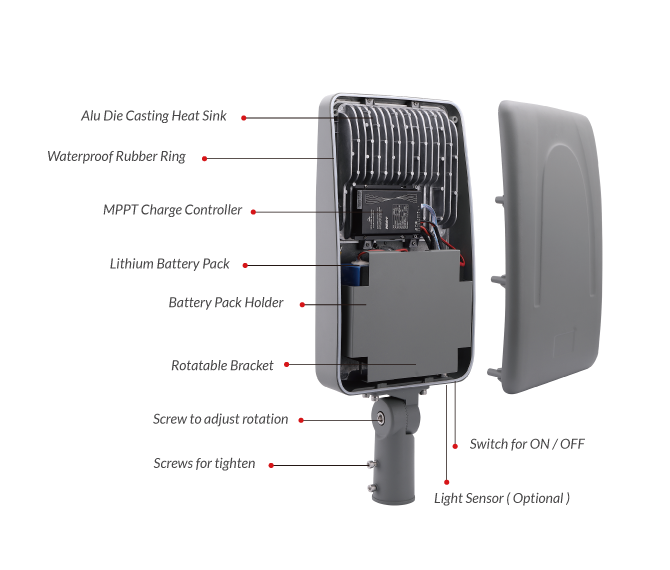

Internal Structure



Dimension



Specification



Model number	HERMES-T8
LED engine	64nos 5W SMD5050
LED rated power	80W±5%
Luminous flux(lm)	>10,800lm
Color termpature	5500K~6000K
Beam angle	TII / TIII
Regular solar panel	200W 36V
Vertical solar panel	3pcs Q140 36V
LifePO4 battery	25.6V 768WH
Charging time	5 hours
Discharging time	>20 hours
Battery lifetime	DOD 100% >2000 cycles
Battery autonomy	2~3 days
Working temp.	-15℃ ~ +70℃
Working mode	6h 100% + 6h 50% sensor
IP rating	IP65



Main Components & Advantages

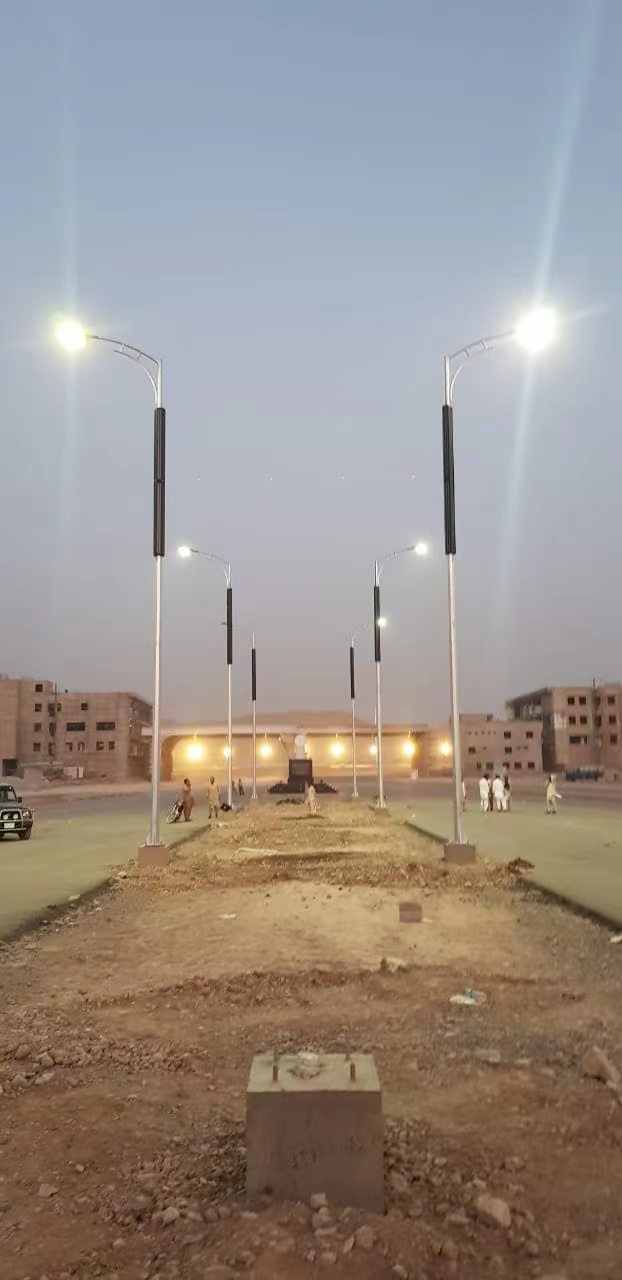

 Application
