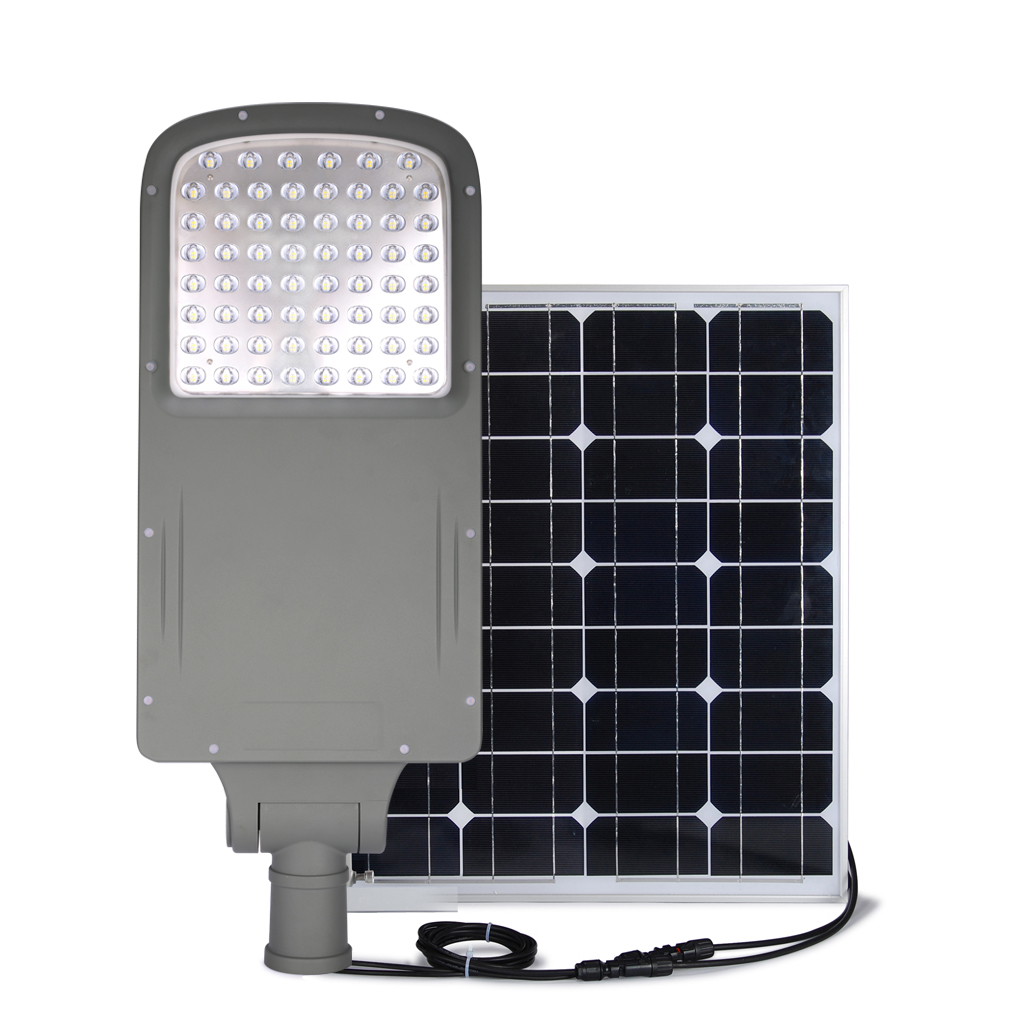

100W Solar Road Lamp

Model:T10

Description

100W Solar Road Lamp

THOR 100W 120W is an perfect answer to be used for main road, it built in high capacity of LifePO4 battery pack and MPPT controller, and providing more than 12000lm which is very good for high poles. 6 hours 100% + 6 hours 50% as default lighting program. It connects to solar panel with universal MC4 connectors and cable is 2.5mm2.

Internal Structure

Dimension

Specification

Model number	T10	T12
LED engine	64nos 5W SMD5050	64nos 5W SMD5050
LED rated power	100W±5%	120W±5%
Luminous flux(lm)	>13,800lm	>15,800lm
Color termpature	5500K~6000K	5500K~6000K
Beam angle	TII / TIII	TII / TIII
Regular solar panel	240W 36V	300W 36V
Vertical solar panel	560W (4pcs Q140 36V)	700W (5pcs Q140 36V)
LifePO4 battery	25.6V 921WH	25.6V 1075WH
Charging time	5 hours
Discharging time	>20 hours
Battery lifetime	DOD 100% >2000 cycles
Battery autonomy	2~3 days
Working temp.	-15℃ ~ +70℃
Working mode	6h 100% + 6h 50% sensor
IP rating	IP65

Main Components & Advantages

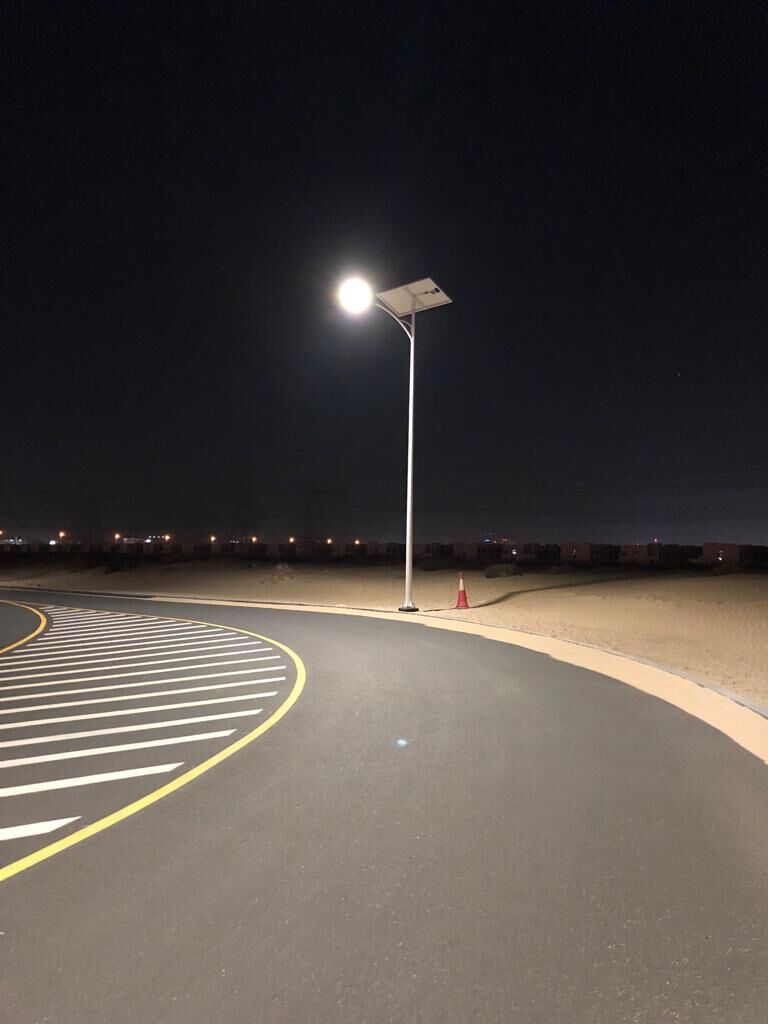

Application
