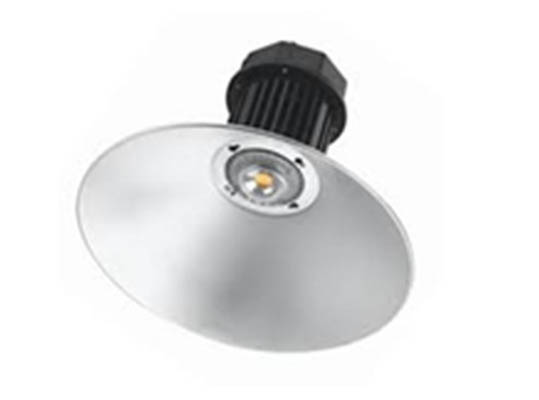

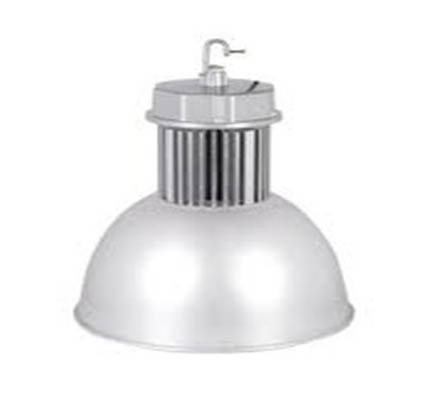

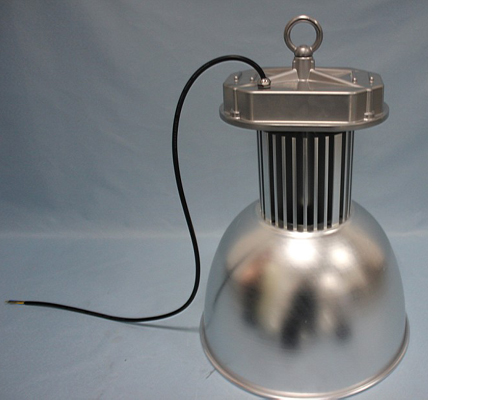

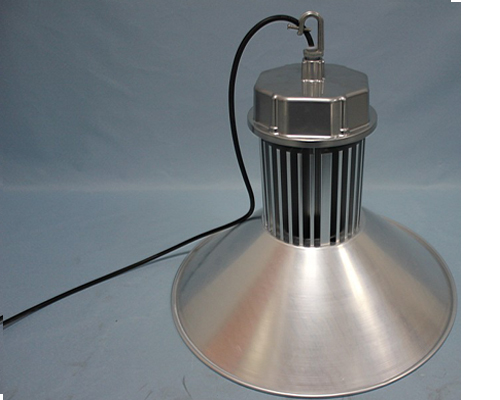

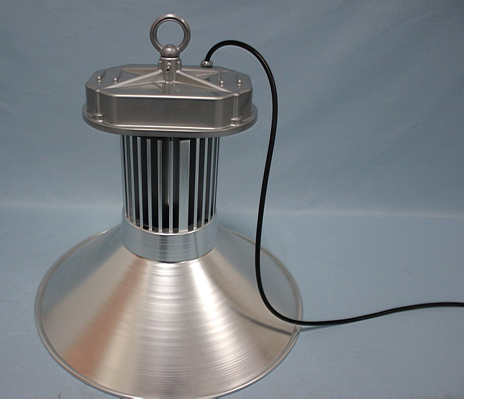

80W LED Highbay Light
Model:ZT-HBL-80W
Power:80W
LED Chip:COB Bridgelux / SMD Cree
Warranty: 3 Years / 5 Years
Description
|
80W LED Highbay
|
|
| Input Voltage | 85-265VAC |
| Freqency Range | 50-60HZ |
| Power Factor: | 0.9 |
| Power Efficiency | >0.85 |
| LED Working Voltage | DC30-36V |
| LED QTY | 1PCS Bridgelux LED Chip |
| LED Consumption | 80w |
| System Consumption | 85W |
| LED Luminous Efficeiency | 80-85LM/W |
| LED initial Flux | 5600-5660LM(2700-7000K) |
| Lamp Efficiency | >80% |
| Average Illuminance | 6m 243LUX |
| 8m 137LUX | |
| 10m 88LUX | |
| Beam Angle | 120°, 90°,45° |
| CRI for CW | RA>0.7 |
| Working Temperature | -40- +55 Degree |
| IP Grade | IP65 |
| N.W. | 5KG |
| G.W. | 5.8KG |
| PACKAGE SIZE： | 240*240*350(mm) |
| The reflector packing Size(（10PCS） |
485*385*485(mm) |
| Color of the lamp shell | Black or Silver |

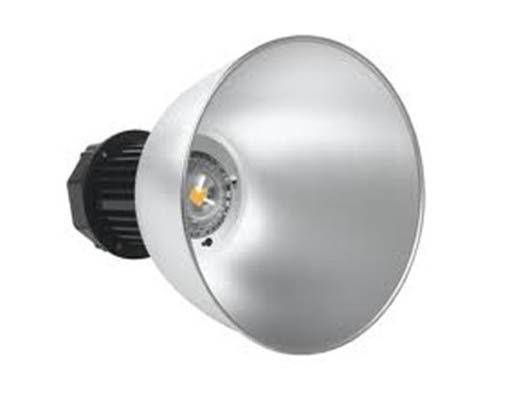

45/90/120 degree Reflector Pictures

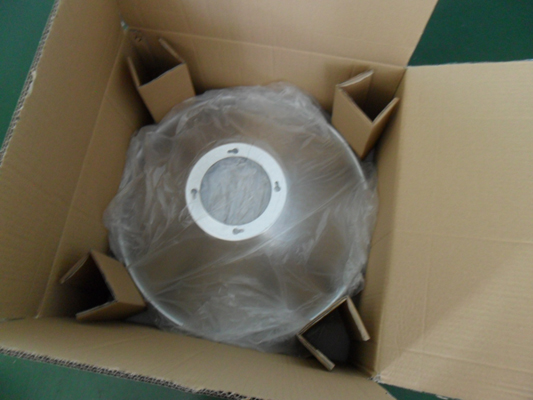

Reflector Package(10PCS/CTN)

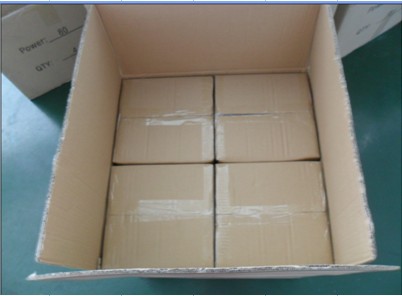

Head Package(4PCS/CTN)
