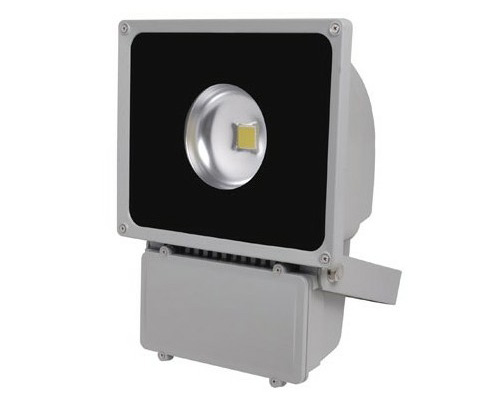

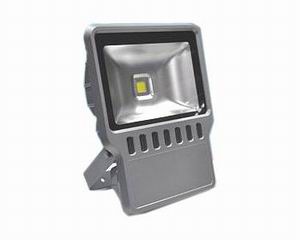

80W LED Floodlight

Model:ZT-FL80W

Power:80W

LED Chip:COB EPISTAR

CCT:2800-6500K/RGB/PIR Sensor Type are available

Description

80W LED Floodlight Parameter
Dimension	290370114(MM)
Input Voltage	100-240VAC
Freqency Range	50-60HZ
Power Factor:	0.95
Power Efficiency	>0.85
LED Working Voltage	DC30-36V
LED QTY	1PCS 45MIL EPISTAR
LED Consumption	80w
System Consumption	90W
LED Luminous Efficeiency	80-90LM/W
Lamp Efficiency	>85%
Average Illuminance	6m :106LUX
	8m :47LUX
	10m :26LUX
CRI for CW	RA>0.7
Working Temperature	-40- +55 Degree
IP Grade	IP65
Connection Wire	Brown :Liver
	Blue :Null
	Green/Yellow : Earth
Working Temperature	-40°C - +55°C
Storage Temperature	-25°C - +65°C
N.W.	5.5KG
G.W.	6.5KG
PACKAGE SIZE：	350170450(mm)
Color of the lamp shell	Silver/Black

Application:
1. Factories
2. Gymnasiums
3. Yards
4. Advertising boards
5. Buildings
6. Lawns
7. Garden designs
8. Some other outdoor places where need flood lighting and lights decoration

Package
