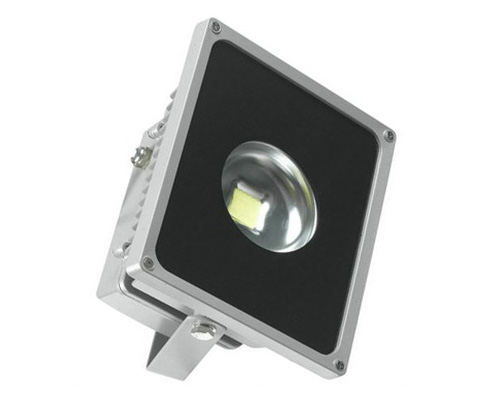

30W LED Floodlight

Model:ZT-FL30W

Power:30W

LED Chip:COB EPISTAR

CCT:2800-6500K/RGB/PIR Sensor Type are available

Description

30W LED Floodlight Parameter
Dimension	225186155(MM)
Input Voltage	100-240VAC
Freqency Range	50-60HZ
Power Factor:	0.95
Power Efficiency	>0.85
LED Working Voltage	DC30-36V
LED QTY	1PCS 45MILEpistar
LED Consumption	30w
System Consumption	33w
LED Luminous Efficeiency	80-90LM/W
Lamp Efficiency	>85%
Average Illuminance	6m :20LUX
	8m :10LUX
	10m :6LUX
CRI for CW	RA>0.72
Working Temperature	-40- +55 Degree
IP Grade	IP65
Connection Wire	Brown :Liver
	Blue :Null
	Green/Yellow : Earth
Working Temperature	-40°C - +55°C
Storage Temperature	-25°C - +65°C
N.W.	2.3KG
G.W.	2.5KG
PACKAGE SIZE：	260180240(mm)
Color of the lamp shell	Silver/Black

Application:
1. Factories
2. Gymnasiums
3. Yards
4. Advertising boards
5. Buildings
6. Lawns
7. Garden designs
8. Some other outdoor places where need flood lighting and lights decoration

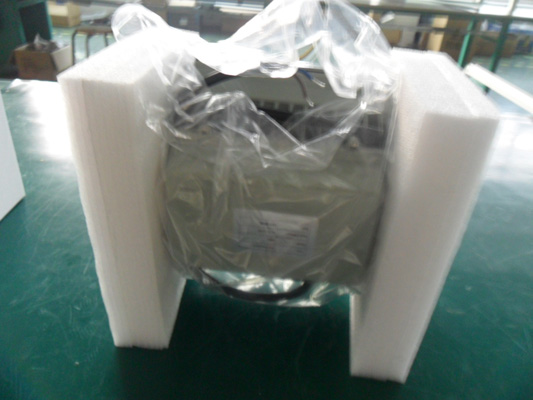

Package
