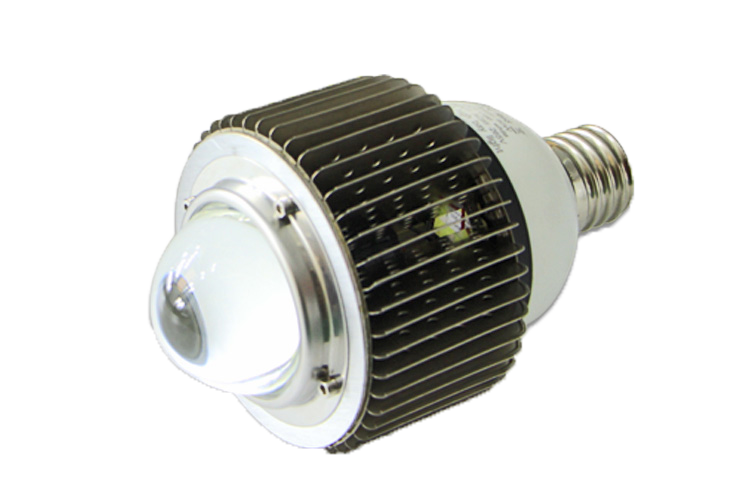

E27 E40 LED Highbay Light 80W
Speciality
• Best cooling system aluminum alloy fin heat sink, intellegent temperature control system
• Lower noise with high quality fan for auxiliary heat dissipation
• High quality CREE / Samsung led chips with glass lens, better light effects
• Different beam angles: 60° 90° 120° according to customers' requirements
• Using anti-fire, high temperature resistant PBT holder (E40/E39/E27/E26 socket or hook base)
• Easy retrofit and effortless maintainance
• Long life span with 3 years warranty
Advantages:
1. <200W lamp,Driver with Special Designed Circuit Program; > 200W lamp: Driver & PCB are both with a special design circuit program .
2.Over temperature protection and Intelligent thermostat system
3.Products can still work normally after 8Hrs testing in 120ºC completely sealed oven
Speciality
• Best cooling system aluminum alloy fin heat sink, intellegent temperature control system
• Lower noise with high quality fan for auxiliary heat dissipation
• High quality CREE / Samsung led chips with glass lens, better light effects
• Different beam angles: 60° 90° 120° according to customers' requirements
• Using anti-fire, high temperature resistant PBT holder (E40/E39/E27/E26 socket or hook base)
• Easy retrofit and effortless maintainance
• Long life span with 3 years warranty
Advantages:
1. <200W lamp,Driver with Special Designed Circuit Program; > 200W lamp: Driver & PCB are both with a special design circuit program .
2.Over temperature protection and Intelligent thermostat system
3.Products can still work normally after 8Hrs testing in 120ºC completely sealed oven
Parameter
PRODUCT NOTES: When installing LED ZT-SE Series retrofit lamps within HID/HPS/MHL/CFL
fixtures, ballast must be bypassed when present.
Model |
POWER(W) |
LM |
Size(mm) |
Net weight |
Lamp holder |
ZT-SE50W |
50 |
4500-4750 |
125*220 |
1KG |
E26/E27/E39/E40 |
ZT-SE60W |
60 |
5400-5800 |
125*220 |
1KG |
|
ZT-SE80W |
80 |
8000-8800 |
125*220 |
1KG |
|
Input Voltage |
AC100V~240V |
||||
Frequency Range |
50Hz~60Hz |
||||
Total Harmonic Distortion |
≤ 9 % |
||||
Power Factor |
>0.98 |
||||
Power Efficiency |
>87 % |
||||
Working Voltage |
DC30~36V |
||||
Color Rendering Index |
Ra>80 |
||||
IP Grade |
IP54 |
||||
Material |
Aluminum Alloy |
||||
LED Chips |
CREE |
||||
Led Luminous Efficiency |
95-120Lm /W |
||||
lamps Efficiency |
>91 % |
||||
Illuminance Uniformity |
>0.6 |
||||
Color Tenperature |
2700-7000K |
||||
Light emitting angle |
120° |
||||
Junction Temperature |
≤80ºC |
||||
Working Temperature |
-40ºC ~ +55ºC |
||||
Storage Temperature |
-25ºC ~ +65ºC |
||||
Working Lifespan |
50000H |
