Solar Flood Light

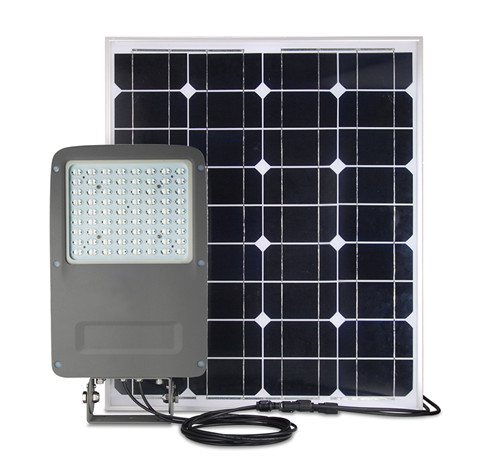

50W & 60W Solar Flood light System
| Model：AI-S50W/S60W | ||
| Rated Power | 50W | 60W |
| Efficiency | 6,200lm | 7,200lm |
| Battery | 548WH | 680WH |
| Controler | MPPT | MPPT |
| Solar Panel | 100W | 120W |
| Motion Sensor | Optional | Optional |

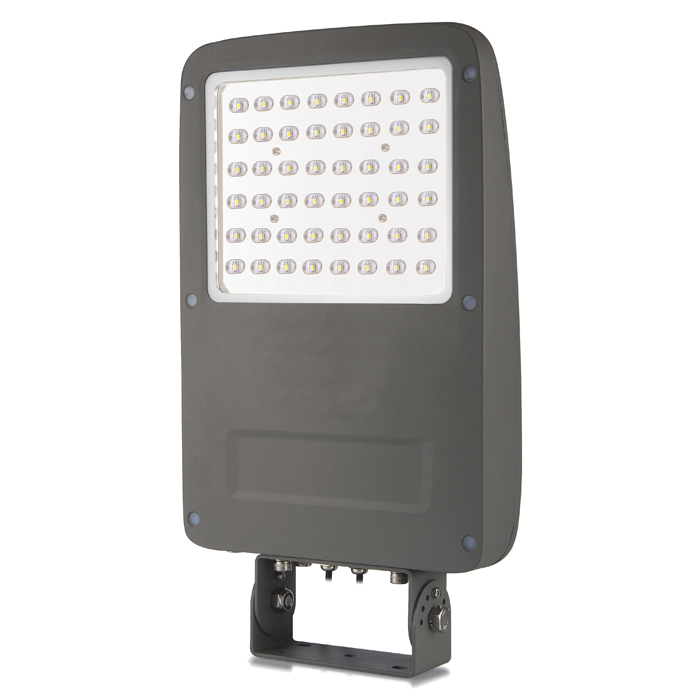

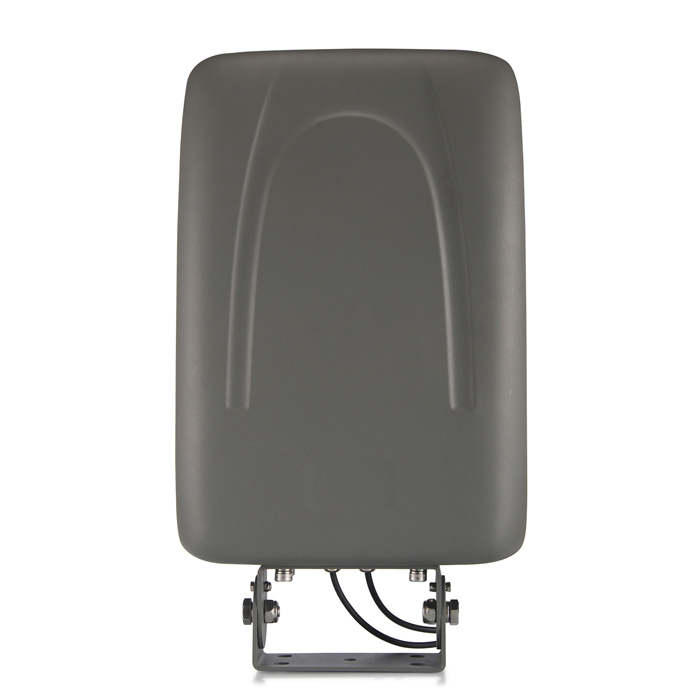

Lamp Head
- Up to 7,200 lumens light output.
- 15 Watts and 60 Watts variance.
- High efficiency of 150 lumen per watt.
- IP 67 aluminium die-cast casing and certified IK08 standard.
- Vandal-resistant build.
- Smart communication integration.
- Suitable for high mast applications up to 12m pole height.
- Integrated lithium battery bank with more than 3000 cycles.
- 12 hours 100 % brightness working with automatic dusk to dawn operation.
- Maximum capacity of 680WH.
Solar Panel
- Helios by auroras is equipped to connect solar panel up to 180 watts.
- High efficiency design; 20% efficiency.
- External solar panel make the system for any geographical conditions and scalablility of the panel size to meet low irradiance project locations.
Smart MPPT Solar Controller
- Customized working mode for dimming and working hours.
- Advanced metering remote control options.
- Easy setting up functions in remote control-optional.
Models for option
| Model NO. | AI-S15W | AI-S20W | AI-S30W | AI-S40W | AI-S50W | AI-S60W | AI-S15W-L | AI-S20W-L | AI-S30W-L |
| Rated Power | 15W | 20W | 30W | 40W | 50W | 60W | 15W | 20W | 30W |
| Luminous Flux(lm) | 2,200lm(6000k) | 2,800lm(6000k) | 3,600lm(6000k) | 5,200lm(6000k) | 6,200lm(6000k) | 7,200lm(6000k) | 2,200lm(6000k) | 2,800lm(6000k) | 3,600lm(6000k) |
| Controller | PWM | PWM | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| Li-Lion Battery | 195WH 12V | 293WH 12V | 391WH 12V | 488WH 12V | 548WH 12V | 635WH 12V | 154WH 12.8V | 230WH 12.8V | 230WH 12.8V |
| Solar Panel | 18V 40W | 18V 50W | 18V 60W | 18V 80W | 18V 100W | 18V 110W | 18V 40W | 18V 60W | 18V 80W |
| Charge Time | 5 Hours | 5 Hours | 5 Hours | 5 Hours | 5 Hours | 5 Hours | 4 Hours | 4 Hours | 4 Hours |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years | 4 Years | 4 Years | 4 Years |

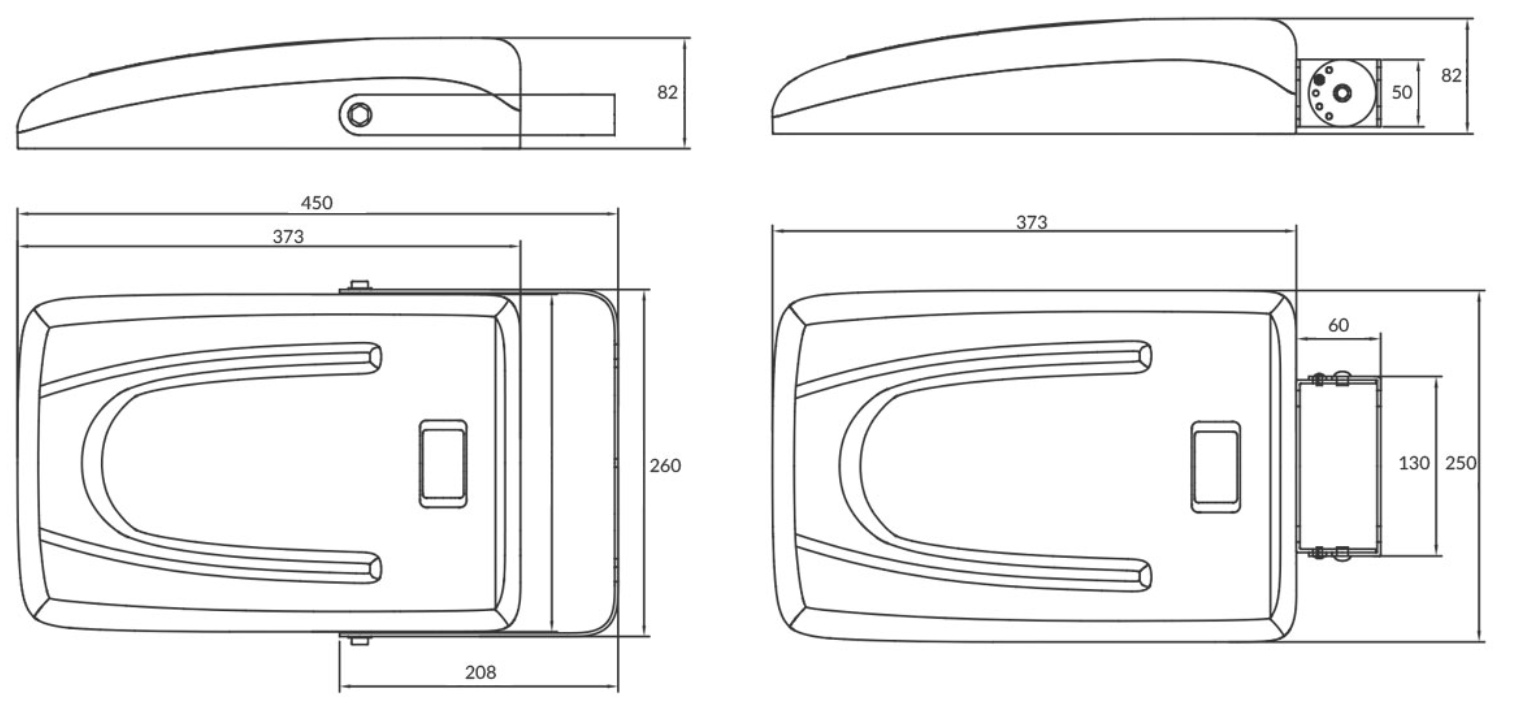

Dimension

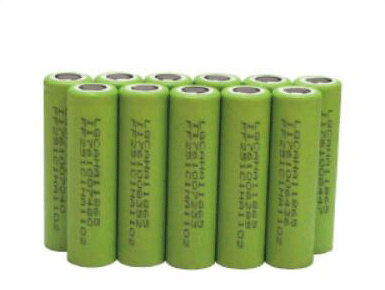

Lithium Battery Pack
Lithium Battery Pack High temperature resistant,up to 2000 cycles lifetime.Smart BMS protection

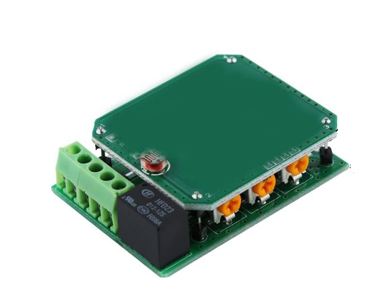

Microwave Sensor
Sensor is optional in case of detection function for security use or to save energy

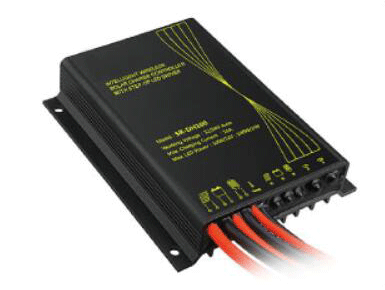

MPPT Controller
Higher chagring efficiency than PWM controllers,Ensuring enough power generated for every night

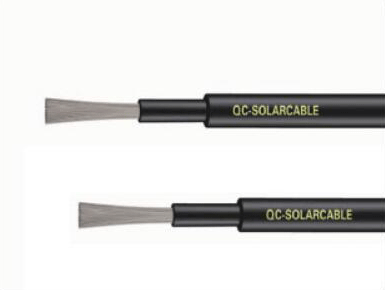

High Quality Cable
Durable and long lifetime of solar cable.Less power will be lost than using small cable.Max 40M from light to solar panel.

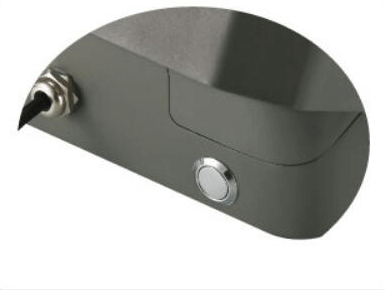

Switch Button
Aluminium material,anti-UV & Oxidation

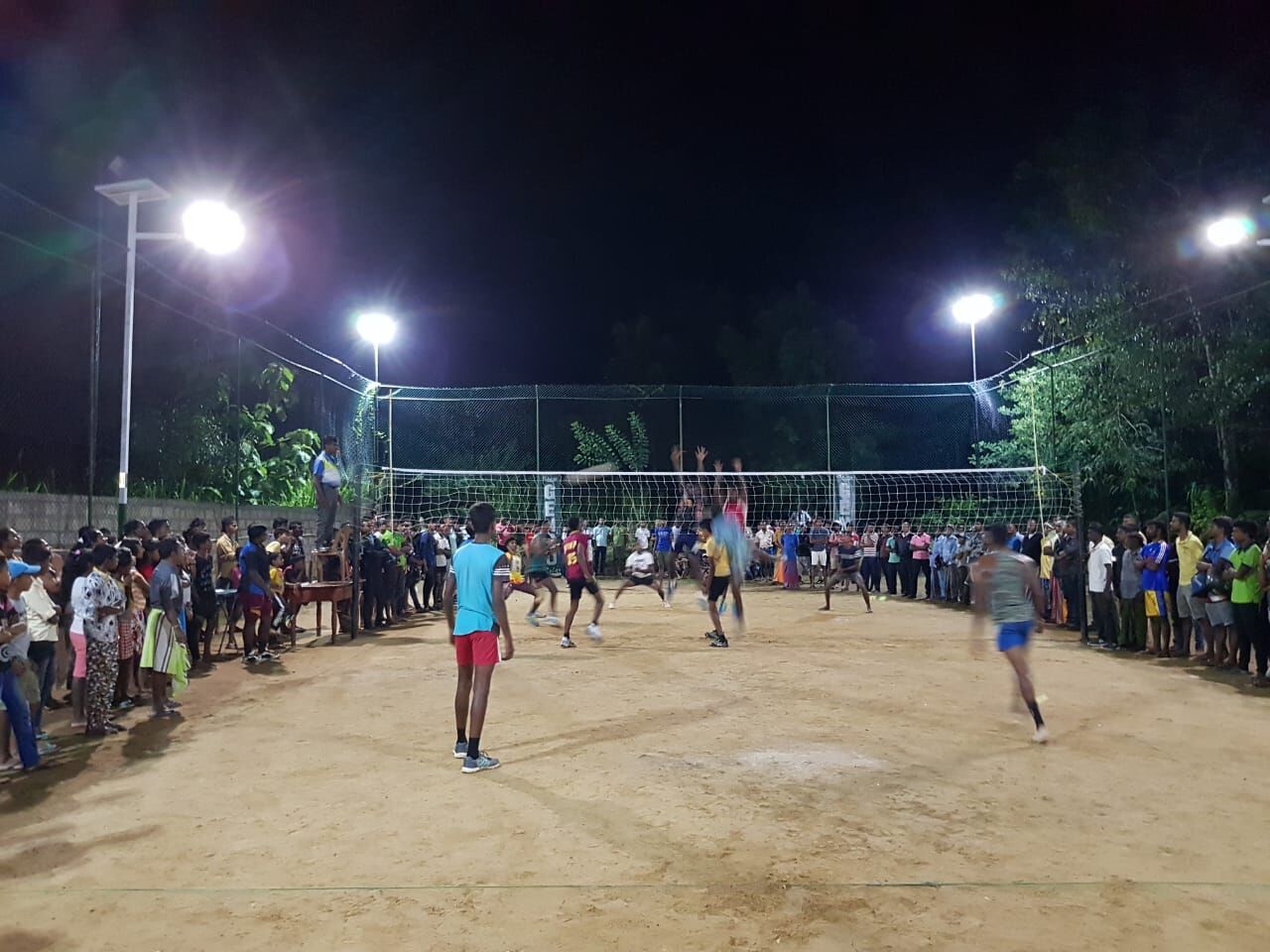

Appliation
