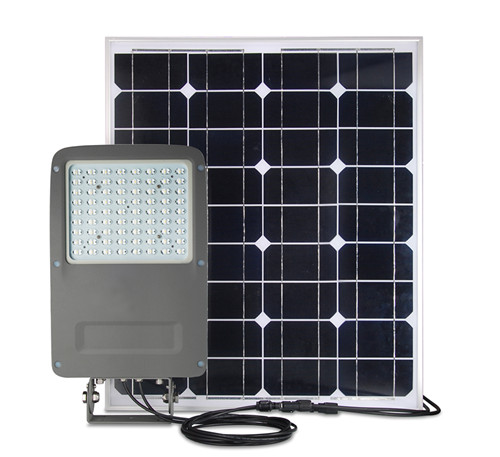

Solar Panel

Smart MPPT Solar Controller

• Customized working mode for dimming and working hours.
• Advanced metering remote control options.
• Easy setting up functions in remote control-optional.

Models for option

Model NO.	AI-S15W	AI-S20W	AI-S30W	AI-S40W	AI-S50W	AI-S60W	AI-S15W-L	AI-S20W-L	AI-S30W-L
Rated Power	15W	20W	30W	40W	50W	60W	15W	20W	30W
Luminous Flux(lm)	2,200lm(6000k)	2,800lm(6000k)	3,600lm(6000k)	5,200lm(6000k)	6,200lm(6000k)	7,200lm(6000k)	2,200lm(6000k)	2,800lm(6000k)	3,600lm(6000k)
Controller	PWM	PWM	MPPT	MPPT	MPPT	MPPT	MPPT	MPPT	MPPT
Li-Lion Battery	195WH 12V	293WH 12V	391WH 12V	488WH 12V	548WH 12V	635WH 12V	154WH 12.8V	230WH 12.8V	230WH 12.8V
Solar Panel	18V 40W	18V 50W	18V 60W	18V 80W	18V 100W	18V 110W	18V 40W	18V 60W	18V 80W
Charge Time	5 Hours	5 Hours	5 Hours	5 Hours	5 Hours	5 Hours	4 Hours	4 Hours	4 Hours
Warranty	2 Years	2 Years	2 Years	2 Years	2 Years	2 Years	4 Years	4 Years	4 Years

Dimension

Lithium Battery Pack

Lithium Battery Pack High temperature resistant,up to 2000 cycles lifetime.Smart BMS protection

Microwave Sensor

Sensor is optional in case of detection function for security use or to save energy

MPPT Controller

Higher chagring efficiency than PWM controllers,Ensuring enough power generated for every night

High Quality Cable

Durable and long lifetime of solar cable.Less power will be lost than using small cable.Max 40M from light to solar panel.

Switch Button

Aluminium material,anti-UV & Oxidation

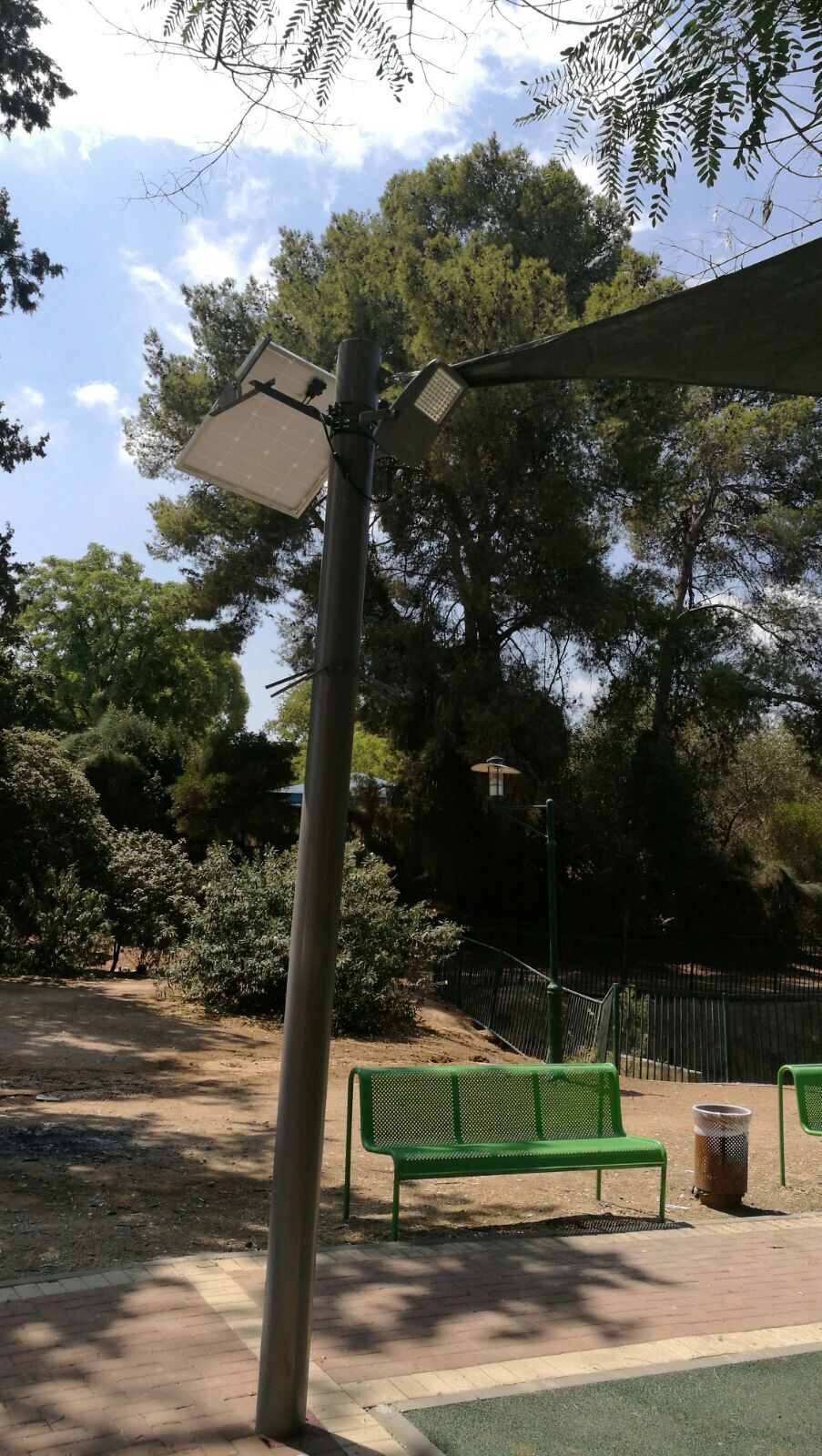

Appliation
