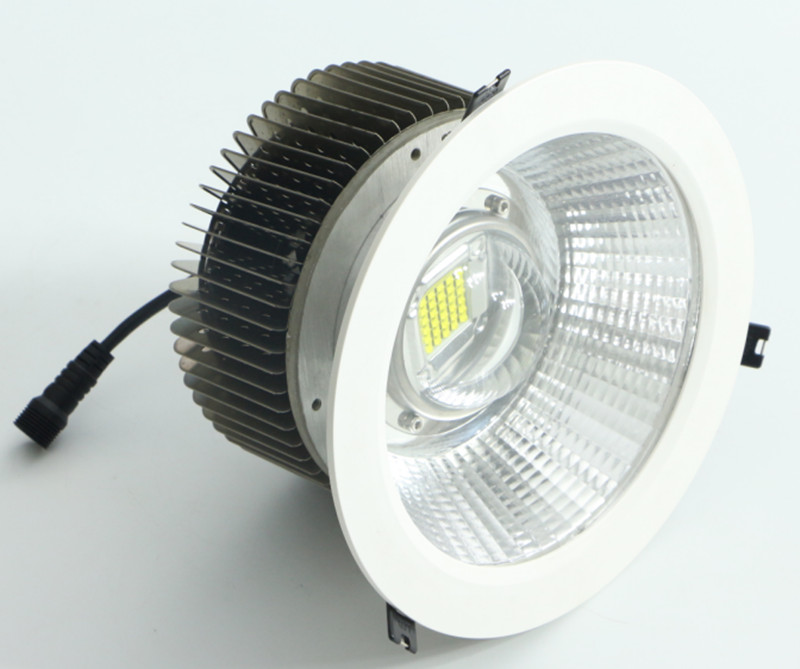

120W LED Downlight
Advantages:
1. <200W lamp,Driver with Special Designed Circuit Program; > 200W lamp: Driver & PCB are both with a special design circuit program .
2.Over temperature protection and Intelligent thermostat system
Features:
Using high quality CREE LED chip, 120-130lm/w high brightness
Power-saving, best aluminum alloy fin heat sink for high effective cooling operation
Both dimmable and non-dimmable are available (0-10V or 1-10V dimmable)
Modern and brandnew style, unique in market
User-friendly anti-flicker design, instant start up
With reflective cup and milkly white lens for option
High power, arge dimensions, light weight, easy installation
Widly applied to commercial premises places, hospital, hotel, etc.
Parameters:
Model | power(W) | LM | size(mm) | Cut out size | ||
ZT-SD50W-A/B | 50 | 4750-5750 | 6" 200*120 | 6" Ø170-180mm | ||
ZT-SD60W-A/B | 60 | 5700-6900 | ||||
ZT-SD80W-A/B | 80 | 7600-9200 | 8" 225*130 | 8" Ø200-215mm | ||
ZT-SD100W-A/B | 100 | 9500-11500 | ||||
ZT-SD120W-A/B | 120 | 11400-13800 | 10" 270*130 | 10" Ø240-250mm | ||
ZT-SD150W-A/B | 150 | 14250-17250 | ||||
ZT-SD180W-A/B | 180 | 15300-17100 | ||||
Input Voltage | AC100V~240V | |||||
Frequency Range | 50Hz~60Hz | |||||
Total Harmonic Distortion | ≤ 9 % | |||||
Power Factor | >0.98 | |||||
Power Efficiency | >87 % | |||||
Working Voltage | DC30~36V | |||||
Color Rendering Index | Ra>80 | |||||
IP Grade | IP54 | |||||
Material | Aluminum Alloy | |||||
Led Luminous Efficiency | 95-120Lm /W | |||||
lamps Efficiency | >91 % | |||||
Illuminance Uniformity | >0.6 | |||||
Color Temperature | 2700-7000K | |||||
Light emitting angle | 60° 90° 120° | |||||
Junction Temperature | ≤80ºC | |||||
Working Temperature | -40ºC ~ +55ºC | |||||
Storage Temperature | -25ºC ~ +65ºC | |||||
Working Lifespan | 50000H |
Can replace MHL/HPS/CFL downlights
Package:
Application:
Corridor, office, shopping mall, display window and inner lighting
Reception room, lobby, hotel room lighting
Museum, exhibition hall, art gallery exhibit lighting
bus/railway/subway stations and other indoor lighting.
