100W LED Downlights

Model:ZT-SD100W

Power:100W

LED Chip:CREE

Description

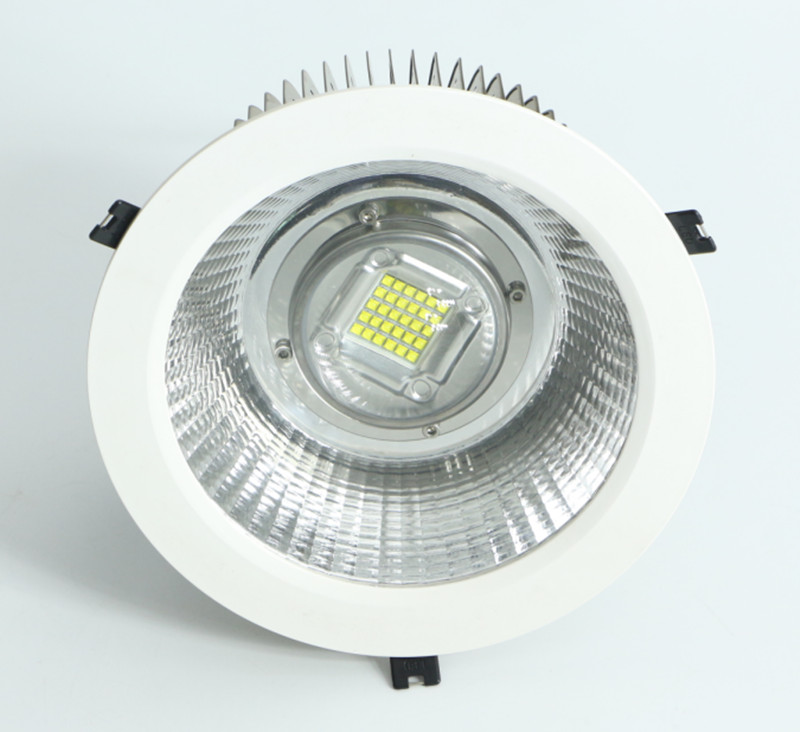

100W LED Downlight

Advantages:

1. <200W lamp,Driver with Special Designed Circuit Program; > 200W lamp: Driver & PCB are both with a special design circuit program .
2.Over temperature protection and Intelligent thermostat system

Features:
Using high quality CREE LED chip, 120-130lm/w high brightness
Power-saving, best aluminum alloy fin heat sink for high effective cooling operation
Both dimmable and non-dimmable are available (0-10V or 1-10V dimmable)
Modern and brandnew style, unique in market
User-friendly anti-flicker design, instant start up
With reflective cup and milkly white lens for option
High power, arge dimensions, light weight, easy installation
Widly applied to commercial premises places, hospital, hotel, etc.

Parameters:

Model	power(W)	LM	size(mm)	Cut out size
ZT-SD50W-A/B	50	4750-5750	6" 200*120	6" Ø170-180mm
ZT-SD60W-A/B	60	5700-6900
ZT-SD80W-A/B	80	7600-9200	8" 225*130	8" Ø200-215mm
ZT-SD100W-A/B	100	9500-11500
ZT-SD120W-A/B	120	11400-13800	10" 270*130	10" Ø240-250mm
ZT-SD150W-A/B	150	14250-17250
ZT-SD180W-A/B	180	15300-17100
Input Voltage			AC100V~240V
Frequency Range			50Hz~60Hz
Total Harmonic Distortion			≤ 9 %
Power Factor			>0.98
Power Efficiency			>87 %
Working Voltage			DC30~36V
Color Rendering Index			Ra>80
IP Grade			IP54
Material			Aluminum Alloy
Led Luminous Efficiency			95-120Lm /W
lamps Efficiency			>91 %
Illuminance Uniformity			>0.6
Color Temperature			2700-7000K
Light emitting angle			60° 90° 120°
Junction Temperature			≤80ºC
Working Temperature			-40ºC ~ +55ºC
Storage Temperature			-25ºC ~ +65ºC
Working Lifespan			50000H

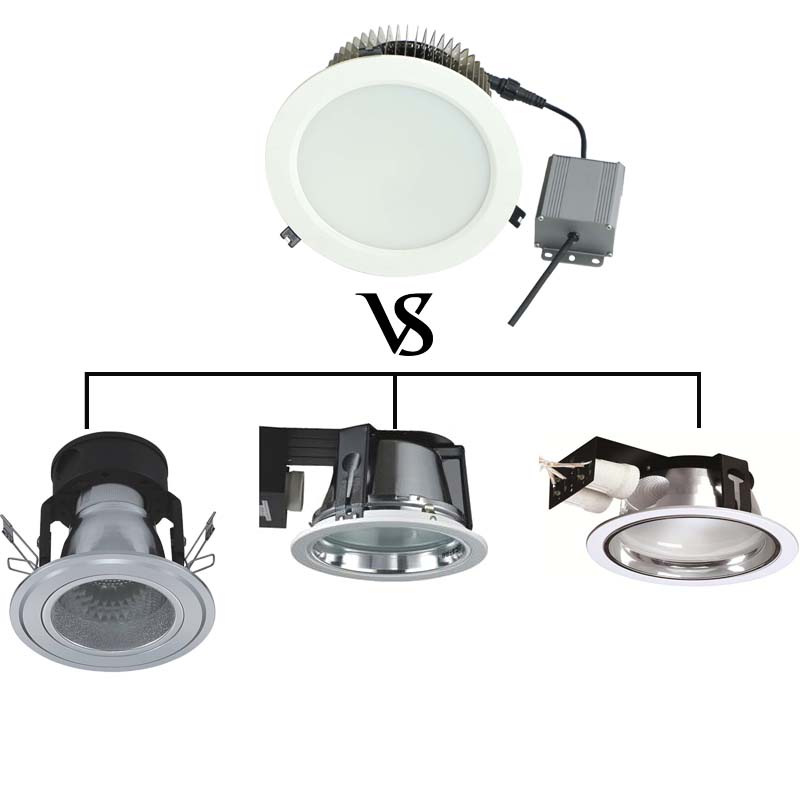

Can replace MHL/HPS/CFL downlights

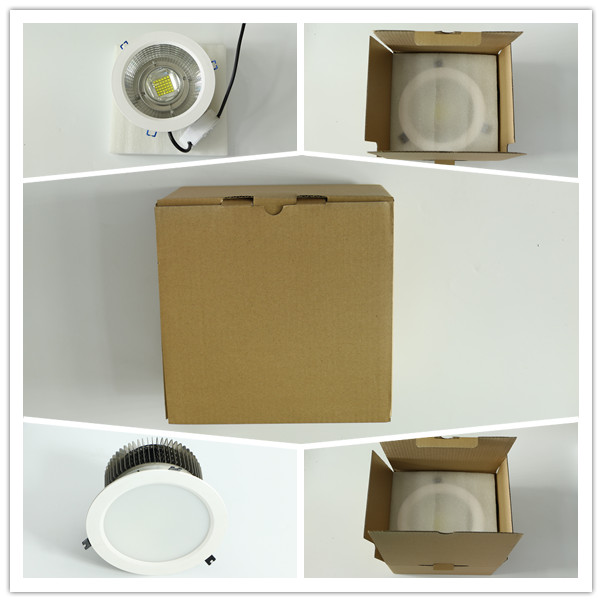

Package:

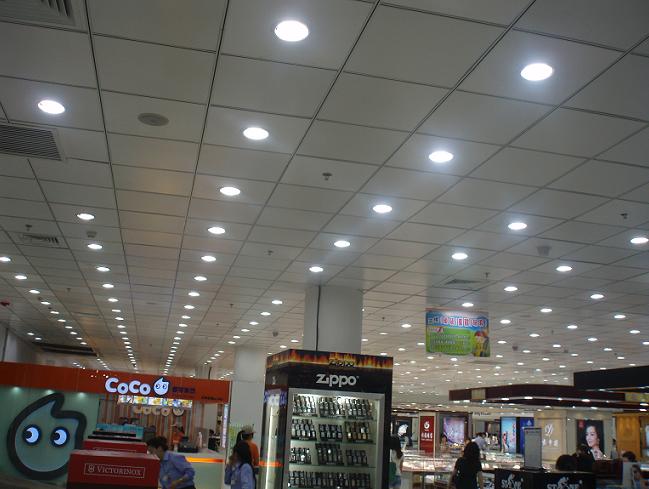

Application:

Corridor, office, shopping mall, display window and inner lighting
Reception room, lobby, hotel room lighting
Museum, exhibition hall, art gallery exhibit lighting
bus/railway/subway stations and other indoor lighting.
