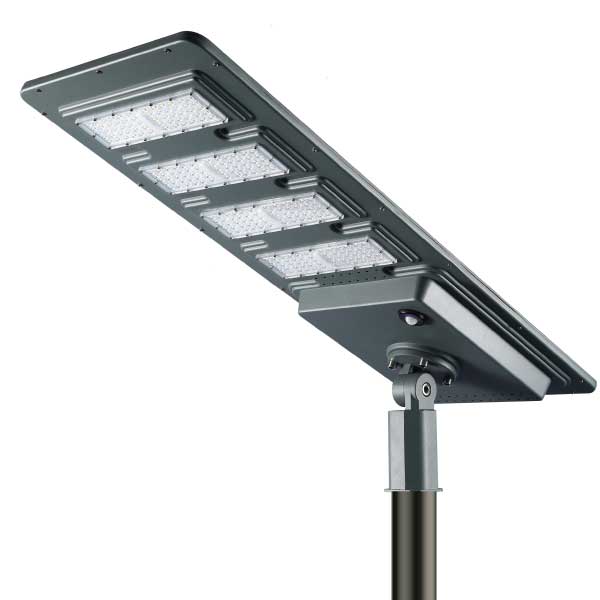

60W AIO solar street light is suitable to be used for 6~10m.

It is good for the application where there is no need for very high lighting performance.

The microwave sensor / PIR sensor is adopted to save more energy.

The lighting program including lighting time and power could be easily re-programmed by remote control even it is installed on the pole.





 Specification

Model number	T300	T400	T600	T800
LED Chip	SMD3030 60Pcs	SMD3030 120Pcs	SMD3030 180Pcs	SMD3030 240Pcs
LED rated power	20W±10%	30W±10%	45W±10%	60W±10%
Luminous flux(lm)	3,600lm max	4,500lm max	6,000lm max	8,800lm max
Color termpature	3000K丨4000K丨6000K
Automatic dimming	30% to 100% when motion sensor is triggered.
MONO Solar panel	42Watts 18V	56Watts 18V	80Watts 18V	120Watts 18V
Charge controller	Programmable MPPT with motion sensor
LifePO4 battery	12.8V 18AH	12.8V 18AH	12.8V 36AH	12.8V 54AH
Charging time	5 hours
Discharging time	>20 hours
Battery lifetime	DOD 100% >2000 cycles , DOD 50% >4000 cycles ,
Battery autonomy	2~3 days
Working temp.	-15℃ ~ +70℃
Working mode	30% +100% Sensor Mode ,12hrs working time or Customized
IP & IK rating	IP65  IK10
Warranty	3 Years







Key Components & Advantages













Main Features



- Lithium Iron Phosphate (LiFePO4) Battery

- Safest lithium chemistry with high energy density

- Built-in automatic protections

- Efffficient & long-lasting up to 4000+ cycles DOD 50%

- Wide temperature range: -20℃ ~ 70℃

- Maintenance free after installation

- Cost effffective







Please contact sales person to get details information
