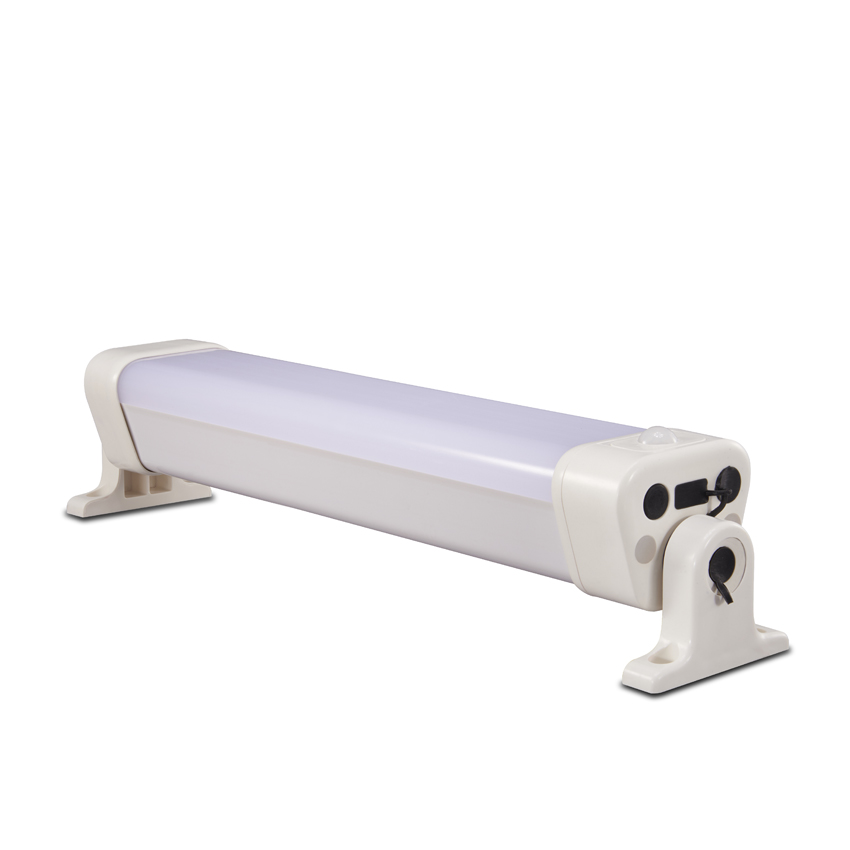

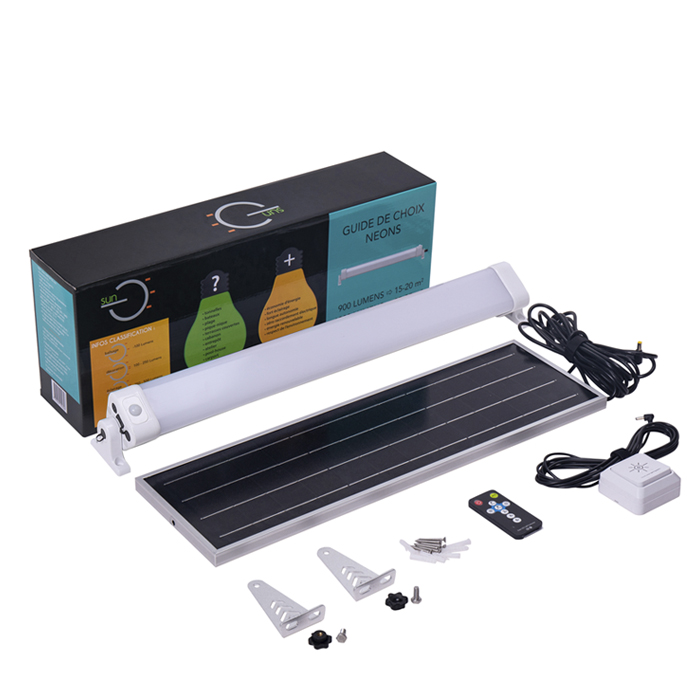

General View

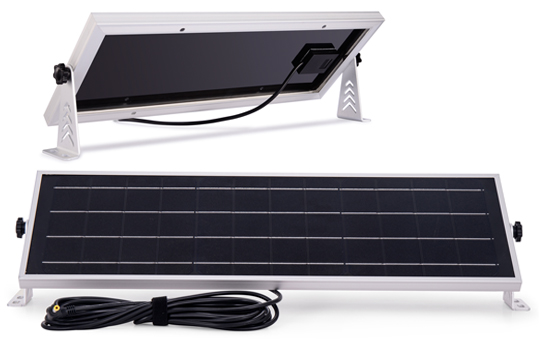

High efficiency MONO solar panel is adopted with high efficiency up to 21.6%. Lifetime is more than 25 years. Including oxidized brackets in aluminium materials instead of steel.Never get rusted even if after years. all components are inside of box , easy for DIY customers, Good looking color color box for retailer market selling.   Cable length from solar panel is 5M with 5.5*2.5 male connector.

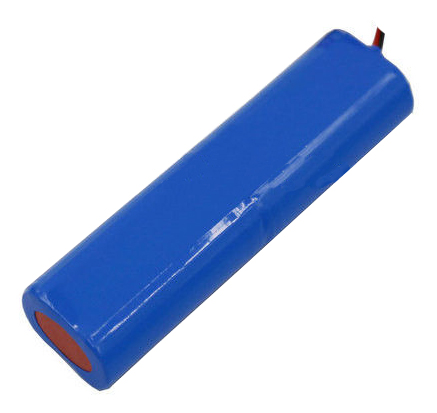

Battery

Integrated lithium battery bank inside of tube body . Lifetime is more than 1500 cycles. 12 hours continuesly working with automatic dusk to dawn operation.  Big battery capacity ensure always lighting at night without darkess
High temperature resistant, Can working well in -20℃~65℃. Multiple protections with smart BMS built inside guarantee a stable performance.

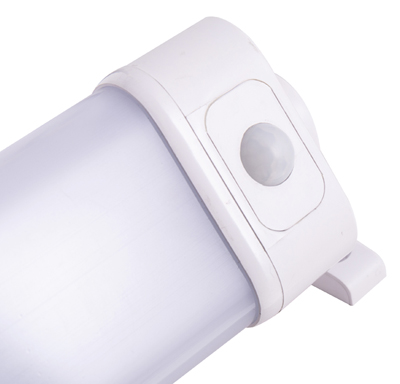

PIR Motion Sensor

PIR Motion Sensor is adopted in order to save energy.  There are two lighting program built in controller, one is 0% power (off)+ 100% power for 1 min, the other is 30% power + 100% power for 1 min.Valid sensitive distance is more than 8 meters.

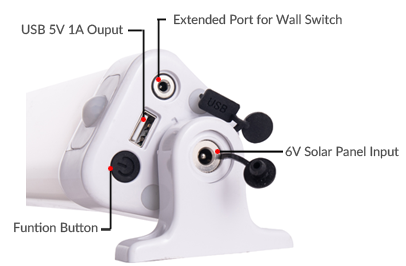

Other Useful Functions

There are many useful functions with this solar lighting kit.  It includes one 5V 1A USB output and push button, the most useful function is : A  DC port is reserved which is to be extended for wall switch so user can turn ON/OFF the light in the way as for normal light freely.  The input port is using 5.5*2.5 female connector. Solar panel can be directly connected easily.

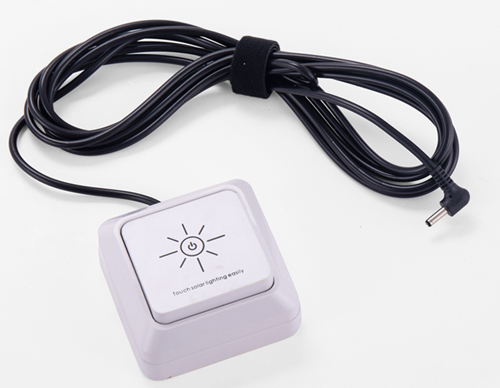

Wall Switch

Wall Switch is a very remarkable and super useful component which is included in package. It comes with 5 meters cord and 5.5*1.5 male connector. Customers can install this switch on wall in surface mounted way and plug into light directly. No more operations. Installation is pretty simple
