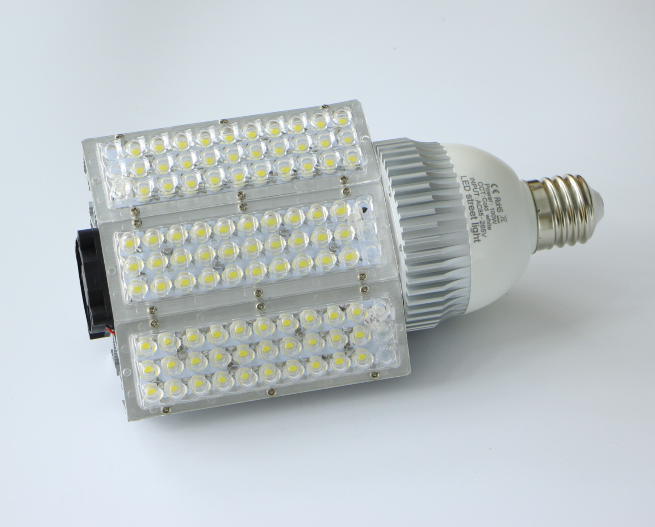

E27 E40 100W LED Street Light
Features:
Delicate and beautiful,seamless injection molding process.
convection,the industry standard.
Energy saving,low carbon environmental protection,no mercury pollution
Intelligent circuit,security and stability.
360 Degree Rotating Lamp Holder,easy installation.
E26/E27/E39/E40 base available.
Intelligent temperature control driver used.
Perfect fan ventilation:long life ,double ball,high speed,no noise. Instantaneous dispel the heat in the LED lamps,the perfect solutions to the heat ventilation of led.
Advantages:
1. <200W lamp,Driver with Special Designed Circuit Program; > 200W lamp: Driver & PCB are both with a special design circuit program .
2.Over temperature protection and Intelligent thermostat system
3.Products can still work normally after 8Hrs testing in 120ºC completely sealed oven
Replacement:
Incandescent lamp,HPS, energy-saving lamps,electrodeless lamps, mercury lamp, sodium lamp replacement.
Applications:
Street , express road, expressway, major road, sideway, road in living area and siedwalk, square,sport place, park, station, airport, lawn, store, playground, tennis court, golf course, basketball court,footable field, etc
Model | POWER(W) | LM | Size(mm) | Net weight | |
ZT-LA30W | 30 | 3000-3600 | 265*105 | 1.3KG | |
ZT-LA40W | 40 | 3600-4320 | 265*105 | 1.3KG | |
ZT-LA60W | 60 | 5400-6480 | 275*150 | 1.5KG | |
ZT-LA80W | 80 | 7200-8640 | 288*150 | 1.6KG | |
ZT-LA100W | 100 | 9000-10800 | 288*150 | 1.6KG | |
ZT-LA120W | 120 | 10800-12000 | 288*150 | 1.6KG | |
Input Voltage | AC100V~240V | ||||
Frequency Range | 50Hz~60Hz | ||||
Total Harmonic Distortion | ≤ 9 % | ||||
Power Factor | >0.98 | ||||
Power Efficiency | >87 % | ||||
Working Voltage | DC30~36V | ||||
Color Rendering Index | Ra>80 | ||||
IP Grade | IP60 | ||||
Material | Aluminum Alloy | ||||
Led Luminous Efficiency | 100-120Lm /W | ||||
lamps Efficiency | >91 % | ||||
Illuminance Uniformity | >0.6 | ||||
Color Tenperature | 2700-7000K | ||||
Light emitting angle | 120° | ||||
Junction Temperature | ≤80℃ | ||||
Working Temperature | -40℃ ~ +55℃ | ||||
Storage Temperature | -25℃ ~ +65℃ | ||||
Working Lifespan | 50000H |
